TANK & BLADDER FITTINGS
LA Aluminum Liquid Storage Containment Fittings
Our cast Aluminum Fittings can be customized to your machining specifications. We also offer a variety of finishing options such as Anodize, Alodine and Powder coat.
To view our Fuel Cell Fittings visit our Fuel Cell Fittings Page.
ONION & PILLOW TANK FITTINGS FOR WATER AND FUEL
LAT’s or Lateral Flange and Components: Fitting and plate is one integrated casting eliminating potential leak paths
![](https://laaluminum.com/wp-content/uploads/2023/12/2-Inch-LAT-LAA0118.50-LAA0118.51.jpg)

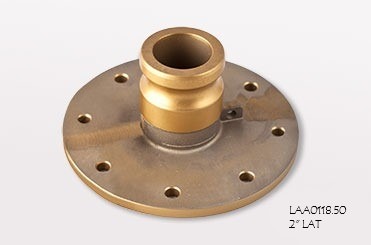

2″ LAT
LAA0118.50 | LAA0118.51
Lateral Flange Access Plate with 2″ Male Cam Fitting Adaptor
.406 & .313 Thru Hole | ANODIZED GOLD
Download Drawing Here (email for access)
Download Drawing Here (email for access)
![](https://laaluminum.com/wp-content/uploads/2023/12/4-Inch-LAT-LAA0117.63-1.jpg)

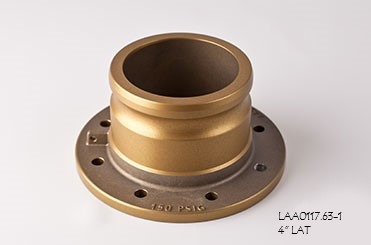

4″ LAT
LAA0117.63-1
Lateral Flange Access Plate with 4″ Male Cam Fitting Adaptor
.406 Thru Hole | ANODIZED GOLD
![](https://laaluminum.com/wp-content/uploads/2023/12/4-Inch-Suction-Stub-LAA0113.51.jpg)
![](https://laaluminum.com/wp-content/uploads/2023/12/4Inch-VD-Comp-Ring-w-groove-LAA0114.63-4-LAA0114.63-5.jpg)

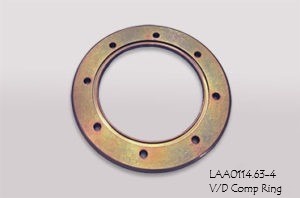

V/D Comp Ring
LAA0114.63-1 | LAA0114.63-3
LAA0114.63-4 | LAA0114.63-5
Vent Drain Compression Ring with O-Ring Groove
.313 & .406 HOLE ANODIZED & ALODINE WITH GROOVE & WITHOUT
![](https://laaluminum.com/wp-content/uploads/2023/12/4-Inch-VD-w-Casted-in-Inserts-Screen-Optional.jpg)

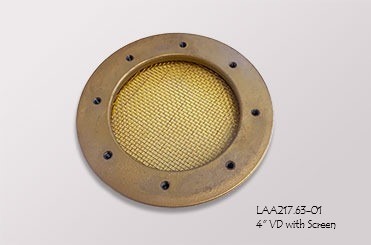

Vent Drain | LAA0217.63-1
Vent Drain w/Cast-In Stainless Inserts and optional Screen
1/4-20 ALODINE GOLD W/ SCREEN AND WITHOUT
Download Drawing Here (email for access)
MANWAY FLANGE OR ACCESS PLATE
Fitting and plate is one integrated casting eliminating potential leak paths
![](https://laaluminum.com/wp-content/uploads/2023/12/4-Inch-Manway-LAA0113.60-1-LAA0113.60-2.jpg)

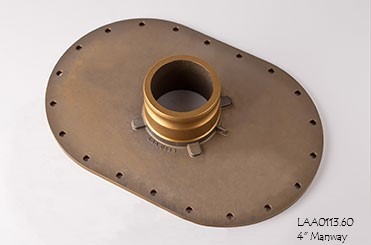

4″ Manway (Standalone)
LAA0113.60-1 | LAA0113.60-2
Manway Flange with 4″ Male Cam Fitting Adapter (Anodized)
.313/.406 HOLE/BOLT (standalone)
![](https://laaluminum.com/wp-content/uploads/2023/12/4-Inch-Manway-Assembly-LAA0113.63-1-LAA0113.63-2-1.jpg)

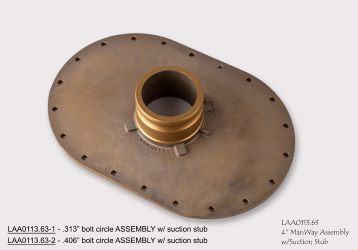

4″ Manway Assembly
LAA0113.63-1 | LAA0113.63-2
4″ Manway Assembly w/Suction Stub
![](https://laaluminum.com/wp-content/uploads/2023/12/4-Inch-Suction-Stub-LAA0113.51.jpg)
![](https://laaluminum.com/wp-content/uploads/2023/12/6-Inch-Manway-LAA0115.50.jpg)

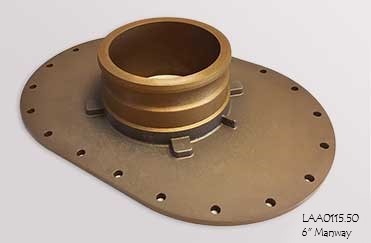

6″ Manway | LAA0115.50
Manway Flange with 6″ Male Cam Fitting Adaptor (Anodized)
.406 Hole Manway (standalone)
![](https://laaluminum.com/wp-content/uploads/2023/05/6-Inch-Manway-Assembly-1.jpg)
6″ Manway Assembly
LAA0115.63
6″ Manway Assembly w/Suction Stub)
![](https://laaluminum.com/wp-content/uploads/2023/12/6-Inch-Suction-Stub-LAA0115.51.jpg)

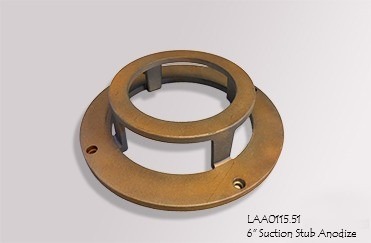

6″ Suction Stub | LAA0115.51
6″ Suction Stub
ANODIZED GOLD
![](https://laaluminum.com/wp-content/uploads/2023/12/Oval-Access-Fitting-w-Casted-In-Inserts-LAA0112.63-LAA0112.63-1.jpg)

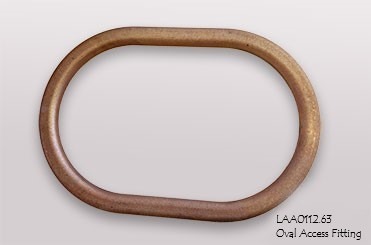

Oval Access Fitting
LAA112.63 | LAA0112.63-1
Oval Access Fitting w/ Cast-In Stainless Inserts (Alodine)
![](https://laaluminum.com/wp-content/uploads/2023/12/LAA0110.63-4-LAA0110.63-5-LAA0110.63-6-LAA0110.63-7.jpg)

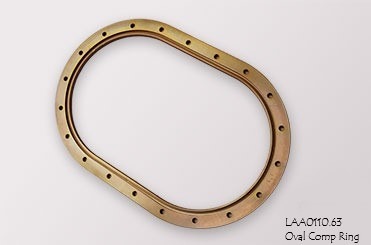

Oval Comp Ring
LAA0110.63-4 (5,6,7)
Oval Compression Ring with O-Ring Groove
Download Drawing Here (email for access) W/Groove and without groove
90 DEGREE DRAIN FITTINGS
![](https://laaluminum.com/wp-content/uploads/2023/12/90-Degree-Globe-Drain-Barbed-LAA0119.50.jpg)

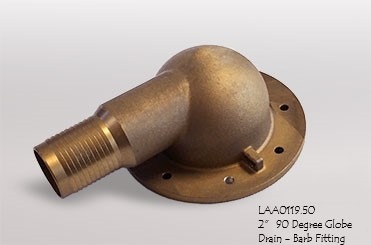

90 Degree Globe Drain
LAA0119.50
90 Degree Globe Drain with 2″ Barb Fitting (Anodized)
![](https://laaluminum.com/wp-content/uploads/2023/12/90-Degree-Globe-Drain-CAM-LAA0119.50-1.jpg)

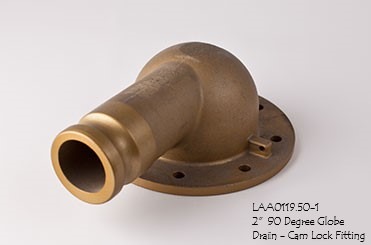

90 Degree Globe Drain
LAA0119.50-1
90 Degree Globe Drain with 2″ Cam lock Fitting (Anodized)
COLLAPSIBLE DRUM FITTINGS FOR LIQUID CONTAINMENT
Towable Tank Fittings- Closure Plates, Closure Rings and Plugs
![](https://laaluminum.com/wp-content/uploads/2023/05/13216E9165-Towable-Tank-Fitting.jpg)
PN 13216E9165
Left Hand Closure Plate Anodize
![](https://laaluminum.com/wp-content/uploads/2023/05/13216E9166-Towable-Tank-Fitting.jpg)
PN 13216E9166
Right Hand Closure Plate Anodize
![](https://laaluminum.com/wp-content/uploads/2023/05/13216E9183-Closure-Ring-1.jpg)
PN 13216E9183
Closure Ring
![](https://laaluminum.com/wp-content/uploads/2023/05/13216E9164-Plug.jpg)
PN 13216E9164
PLUG Anodized
Request Information
Talk to one of our permanent mold casting specialists for further details.
